Loft design project: technical guide with DWG examples

Lofts, with their unique structure, overturn the traditional concept of living, offering a new vision of domestic life. This modern housing type is gaining increasing popularity in the real estate landscape, both in Italy and abroad, thanks to its versatility and ability to adapt to contemporary lifestyles.

Starting from these premises, we propose a technical in-depth analysis of the loft project, in which the design criteria and ideal distribution solutions will be analyzed to maximize comfort, livability, and functionality of the space, responding to various needs.

In this focus, we will be exploring both the theoretical and practical aspects relating to a loft project: from the definition of the building type and its essential characteristics to producing a complete project, which can serve as a useful guide for the entire design process, together with project drawings (floor plans, elevation views, and cross-sections) in DWG and BIM model  for free created with a 3D architectural BIM design software.

Download here the 30-day free trial version of Edificius, the architectural BIM design software

Definition of loft

Before delving into the design characteristics of a loft, it is essential to define its meaning.

A loft is a particular type of housing characterized by large and fluid spaces, devoid of rigid partitions, and with very high ceilings. The typical structure of a loft often derives from the conversion of former industrial or commercial spaces (such as factories, warehouses, or workshops) into residential units. These buildings, previously used for production purposes, feature large surface areas and few internal dividers, offering an open and flexible organization of spaces.

The term “loft” has become over time synonymous with one of the first building types intended for both living and a studio, often combining both functions. This concept falls within a broader urban trend that has seen the reuse of unused spaces, especially in post-war industrial areas. Lofts represent one of the most emblematic examples of the redevelopment of disused industrial structures, generally characterized by large surfaces and large windows, which ensure ample natural light.

These spaces became famous for being adopted by artists and “creatives” who sought affordable and flexible housing to combine life and work. A famous example is the lofts of New York artists in the 1970s, transformed into live-work spaces within old abandoned warehouses on the outskirts of the city. Among these, Andy Warhol’s The Factory is probably the most iconic example: a minimally furnished loft that served simultaneously as a home, art studio, exhibition space, and meeting point for artists and intellectuals.

The phenomenon of lofts originated in the United States but quickly gained traction in Europe, especially from the mid-1990s onwards. Following the industrial crisis, many European cities began to redevelop vast degraded or abandoned urban areas. An emblematic case is the recovery of English docks or large suburban warehouses, which, through urban regeneration processes, have been transformed into modern homes with an essential and contemporary style.

Thus, the loft is not just a living space but a symbol of a new vision of the city and urban living, capable of transforming spaces once linked to production into places dedicated to creativity, art, and daily life. Today, this housing type continues to enjoy great success, representing an ideal choice for those seeking unconventional, flexible, and highly customizable housing solutions.

Loft project

The essential characteristics of a loft

The main characteristics of a loft largely depend on the type of property from which it originates:

• warehouse conversion loft: these come from the conversion of former industrial structures, characterized by large spaces and very high ceilings, generally between 7 and 10 meters. These lofts are often located within gated complexes, where management is centralized and includes maintenance of green areas, heating, security, and other common services. Homes of this type usually feature usable outdoor spaces and loading-unloading areas, maintaining the horizontal layout typical of industrial buildings. These characteristics provide a sense of great breathability and spatial freedom, ideal for those seeking an open and bright environment;
• store-derived lofts: these arise from the transformation of old commercial premises, often located on secondary streets, which have become available due to changes in the urban commercial fabric. These spaces typically have average heights, allowing for the creation of mezzanines in many cases. This makes them easily convertible into residential units. Due to their layout and direct accessibility from the street, they can represent a versatile solution for those seeking a living space with functional adaptation possibilities, such as offices or small professional activities;
• office-derived lofts: these are distinguished by average heights and a configuration that is often more fragmented compared to other types of lofts. Typically, they are found in isolated units, which can coexist in mixed contexts with both residential spaces and offices. However, a disadvantage of this type is the lack of usable outdoor spaces, especially on the ground floors, making them less suitable for those who need open environments or green areas. Additionally, office-derived lofts may prove impractical for activities requiring frequent movement of goods, due to their configuration and location, often far from loading-unloading zones.

Regardless of the specific origin, a loft is characterized by some essential features that define its architecture and aesthetics:

• absence of internal divisions – the main distinguishing feature of a loft is the open space, meaning the absence of internal wall partitions. This characteristic allows for great freedom in organizing spaces, enabling the adaptation of the interiors of the home to various functional needs, without visual interruptions;
• ceiling height – lofts originate from industrial, artisanal, or commercial spaces that, for work needs, have particularly high ceilings. This often allows for the creation of intermediate floors, such as mezzanines, which are usually used as sleeping areas or for other secondary functions;
• exposed elements – another distinctive feature of lofts is the presence of other structural and system elements left exposed, which reinforce their industrial character. In some cases, especially in buildings constructed in the 1800s, one can find load-bearing masonry walls, typically made of brick, left uncovered, cast iron or steel columns supporting beams of the same material, or reinforced concrete structures forming visible grids, and exposed piping, often highlighted with contrasting colors to integrate them into the overall aesthetics of the space;
• large windows – finally, additional components that qualify the spaciousness of the loft are the typical large windows of industrial buildings which, as previously mentioned, may have a load-bearing frame made of masonry, steel, or reinforced concrete. The frames, in some cases positioned as continuous glazing or inserted in the floors or the covering truss beams, ensure, with their dimensions, very bright environments.

Source imageImage generated by usBIM.codesign AI

Designing a Loft

Designing a loft requires careful consideration to make the most of the space available and create a balance between aesthetics and functionality. The large surfaces, high walls, and large windows are distinctive features of this type of dwelling, offering the opportunity to play with furniture, materials, and natural light in entirely innovative ways.

When designing a loft, it is essential to find solutions that enhance the original industrial features, such as exposed beams, concrete or raw wood floors, and brick walls. However, it is important to integrate these features with modern and comfortable elements to create an environment that is both welcoming and stylistically pleasing.

The functional distribution of spaces, adequate lighting, and the inclusion of elements that promote privacy are fundamental aspects to consider during the design process.

Design ideas for a Loft

When approaching the design of a loft, the keyword is “creativity.” Open spaces offer endless possibilities for configuration, and every choice must take into account daily needs as well as the overall aesthetics of the living space. An interesting idea is to use multifunctional furniture that can serve multiple roles, such as sofas that become beds or tables that can be folded or expanded according to needs.

The inclusion of architectural elements such as mezzanines is another very common solution: these elements can take advantage of the height of the space by creating an elevated area, often intended for a bedroom or study. This not only optimizes vertical space but also adds a touch of visual dynamism to the environment.

Regarding materials, the combination of industrial elements with warm fabrics and surfaces can prove to be a winning choice. Steel and concrete can be balanced with natural wood and soft fabrics, creating a fascinating contrast between functionality and warmth. Lighting plays a crucial role: pendant lights, designer floor lamps, and spotlights can enhance the volumes and create evocative atmospheres in the various areas of the home.

How to Design a Loft Apartment

Now that we have explored some general ideas for creating a loft, it is time to delve into the details and analyze step by step the fundamental phases of designing such an apartment. Each phase plays a crucial role in creating a living space that is functional, welcoming, and in line with the industrial style that characterizes lofts.

Let’s see how to concretely tackle the different design phases:

• preliminary analysis and evaluation of the space: designing a loft begins with a thorough analysis of the available space. This step is essential to understand the potential and limitations of the environment, evaluating aspects such as ceiling height, the presence of windows, visible structural elements, and the quality of natural lighting. It is necessary to examine the load-bearing structure and verify if modifications can be made without compromising the stability of the building. For example, in a former industrial building, one might consider integrating a mezzanine, but only if the height allows it. The analysis of existing openings, which may consist of large windows or skylights, is crucial for planning an effective distribution of natural light within the living space;
• defining the floor plan and distribution of spaces: once the preliminary analysis is complete, the next step is to define a functional floor plan that optimizes the distribution of internal spaces. Since lofts are usually characterized by open spaces, it is essential to organize the various functional areas in a fluid and coherent manner. The challenge is to create a balance between visual continuity and the separation of different zones (living room, kitchen, sleeping area, bathroom). The use of furniture such as bookshelves, sliding panels, or transparent dividers can help delineate spaces without interrupting the perception of spaciousness typical of the loft. It is important to pay particular attention to the living area, which often becomes the focal point of the home, and to the kitchen, which can be harmoniously integrated into the space through open or semi-open solutions, maintaining stylistic consistency with the overall design;
• designing the possible mezzanine: if space allows, designing a mezzanine represents one of the most interesting solutions to take advantage of the characteristic height of lofts. The mezzanine can be used for the sleeping area or as a study, offering a private area without compromising the spaciousness of the open space below. However, it is necessary to consider some technical aspects: the minimum height under the mezzanine must be sufficient to ensure proper usability of the spaces, and the structure itself must be solid and safe. Access to the mezzanine can be achieved using spiral or straight stairs, depending on stylistic preferences and available space. As we will see better later in the article, the intelligent use of a mezzanine can truly transform the perception of the living space;
• selection of materials and finishes: this is a crucial phase in the design of a loft, as it helps maintain the industrial identity of the space. Materials such as raw concrete, untreated wood, metal, and exposed bricks are perfect for recalling the industrial origins of the loft, but they must be balanced with elements that add warmth and comfort, such as soft fabrics, wooden floors, or furniture made from natural materials. Smooth or glossy surfaces, such as glass or steel, can also integrate elegantly, maintaining a minimalist and modern style. The key is to find a balance between industrial roughness and residential comfort, to avoid the environment feeling too cold or bare;
• designing lighting solutions and systems: lighting is another fundamental aspect for the success of a loft project and must be carefully studied, especially in cases where natural light is insufficient. The use of large pendant lamps, directional spotlights, and accent lights can help enhance the architectural features of the space, such as exposed beams or brick walls. A layered lighting approach, combining ambient, functional, and decorative light, allows for the creation of different atmospheres within the loft, while ensuring practicality and comfort. The design of systems, such as heating and air conditioning, is also fundamental, especially for large spaces. A floor heating system can be an excellent choice to maintain a clean design without visible elements;
• selection of furniture: choosing furniture for a loft requires careful attention to maintain the right balance between aesthetics and functionality. The furniture must harmonize with the industrial style of the environment while providing the necessary comfort for daily life. Minimalist design furniture made from materials such as solid wood, metal, and glass are ideal for respecting the loft’s aesthetics. Multifunctional furniture, such as tables that also serve as storage or beds with drawers, can help maximize space, especially in more compact environments. The arrangement of furniture should be planned to maintain the fluidity of the open space, leaving ample passage areas and making the most of every corner;
• integration of smart technologies and sustainability: an aspect that should not be overlooked in the design of a loft is the integration of smart technologies and attention to sustainability. The inclusion of home automation systems can significantly enhance living comfort, allowing for intelligent control of lighting, heating, and security. Furthermore, sustainability is an increasingly relevant topic: using eco-friendly materials and energy-saving solutions, such as solar panels or high-efficiency windows, contributes not only to reducing environmental impact but also to improving the quality of life within the loft.

Having examined the fundamental phases for designing a loft, in the next paragraph we will explore in more detail some functional solutions, focusing particularly on systems and the most effective strategies for integrating the mezzanine into the living space.

What is artificial intelligence in the architectural field

Artificial intelligence (AI) applied to architecture (through AI architecture generators) is a discipline that allows computer systems to replicate human cognitive abilities such as learning, interpretation, and problem-solving in design.

In the construction field, AI represents a breakthrough because it enables the analysis of complex data in very short times and supports professionals in making more effective and informed decisions.

Through intelligent algorithms, it is now possible to:

• interpret design, environmental, and regulatory data;
• automate repetitive tasks;
• optimize design solutions based on functional, aesthetic, and economic criteria;
• improve architectural visualization thanks to extremely realistic 3D representations.

The adoption of AI in architectural design does not replace the creative thinking of the architect, but enhances it, facilitating the development of innovative, high-performing, and customized solutions.

Source imageImage generated by usBIM.codesign AI

What AI allows in the design of a loft

Automatic generation of design variants

Generative design, powered by artificial intelligence, allows for the creation of a multitude of design solutions starting from a few basic parameters. It is enough to set some constraints, and the system can generate optimized configurations according to the established priorities.

In a context like that of a loft – often characterized by large open spaces and complex structures – AI allows for the exploration of innovative, customized, and functionally efficient layouts in a short time, promoting a more dynamic and flexible design.

Photorealistic 3D visualizations

Thanks to AI applied to image generation, it is now possible to obtain high-quality renders in very short times. 3D models can be transformed into photorealistic images that integrate materials, lights, furnishings, and textures consistent with the desired style. Even from a simple sketch or a text description, algorithms can generate detailed and engaging scenes.

This functionality allows architects to communicate more clearly with clients and make real-time modifications, improving the decision-making process.

Quick tests of materials and layouts

The predictive capability of AI allows for the rapid and effective simulation of the aesthetic and functional impact of different design solutions. Whether comparing materials (wood vs concrete), modifying the arrangement of furnishings, or evaluating the effect of natural lighting, AI provides almost instantaneous visualizations and simulations.

Integration with BIM software

Artificial intelligence integrates seamlessly with Building Information Modeling (BIM) software, amplifying its operational and strategic potential. In BIM environments, AI can read, analyze, and reprocess vast amounts of geometric, structural, and performance data, improving the quality of the entire design workflow.

The main applications include:

• predictive analysis and optimization – AI identifies design criticalities (such as conflicts between systems and structures), suggesting corrective solutions in real-time;
• document automation – automatic generation of documents, metric calculations, regulatory checks;
• generative input and output – the data contained in the BIM model can feed generative AI algorithms for the creation of new solutions, which can in turn be reprocessed and detailed within the BIM.

Software producers like ACCA software are already integrating AI modules into their tools, making the synergy between BIM and artificial intelligence increasingly fluid and powerful.

Practical advantages in loft design with AI

The adoption of AI in loft design offers a series of tangible advantages that transform the entire design process:

• optimization of open spaces – thanks to generative design, it is possible to define functional zones within large open volumes without resorting to traditional subdivisions;
• management of natural light – AI analyzes orientation, openings, and geometries to maximize lighting and improve living comfort;
• speed in stylistic development – it is possible to quickly experiment with style variants – industrial, Scandinavian, minimalist – applying textures, materials, and furnishings with visual consistency;
• solutions to utilize height – in lofts with double heights or mezzanines, AI can suggest tailored solutions for stairs, suspended furnishings, vertical bookshelves, or livable lofts;
• integration of structure and design – existing elements such as beams, columns, or visible systems can be harmonized with furnishings or reinterpreted as distinctive decorative elements;
• real-time adaptability – AI allows for a more responsive design to client feedback, facilitating revisions and adjustments without compromising time and costs.

Functional Solutions in Loft Design

The dimensions of former industrial environments allow the loft a wide range of possible functional/distributive solutions: the design of a loft by an interior designer can develop in a diversified manner, generating decidedly innovative personalized spaces.

It is important to consider that in the design of a loft, renovation works can be complex both due to the size of the structure and the presence of municipal regulations and rules for building and land registry transformation, for example from warehouse to residential unit.

Based on the result to be achieved with the renovation project from warehouse to loft, specific design interventions may be suggested:

• consider the architectural layout of the warehouse, redefining the floor plan and the opportunity to create one or more mezzanines to be used as a study or sleeping area;
• for a decommissioned warehouse, internal and external renovation works may be necessary, with particular attention to the usability of the structure;
• analyze thermal insulation solutions capable of improving energy efficiency, as one of the problems a loft might present is thermal dispersion caused by the internal volume and the building materials used during construction;
• to further improve thermal insulation, consider window frames with double glazing equipped with selective films that illuminate the internal space while filtering UVB and UVA rays, without overheating the environment during the summer season;
• a warehouse can reach about six meters of internal height, so we can hypothesize the creation of a mezzanine area intended for the sleeping area, study, or relaxation area, which will ensure appropriate privacy;
• the services should preferably be located in a corner corresponding to the mezzanine that will serve as the ceiling for the room.

Finally, being an open space, with the use of specific furniture complements, we create a continuum without creating discontinuity between the living/kitchen/dining area.

For the systems part, we can also evaluate different hypotheses.

Heating

The volume of a loft is generally larger than that of a traditional dwelling:

• if the ceiling does not exceed 3.5 meters in height, a radiator system can be installed;
• if the area to be heated is very large and the ceiling height exceeds 3.5 meters, it is preferable to install a radiant system, either wall-mounted or floor-mounted;
• alternatively, it is also possible to use a ducted air conditioning system, through vents for cold air in summer and warm air in winter; this solution is also the most aesthetically suitable, as the ducting pipes fit well with the stylistic features of the loft.

Particularly suitable for very large spaces and especially in environments with significant floor-to-ceiling height, such as lofts, is heating with infrared panels: infrared heating is an innovative solution for heating a home by generating heat through radiation. It respects the environment and reduces the necessary expenses.

This special technology exploits the properties of infrared rays, which are a type of radiation invisible to the human eye. Infrared rays heat the human body directly, without the need to heat the surrounding air. In this way, infrared radiant panels provide direct heating to the designated areas, generating several advantages compared to the use of more traditional systems.

Electrical and plumbing systems

To address practical issues, to try to contain expenses at an economic level, and also to meet certain aesthetic and taste requirements, there are three possible solutions for renovating or building the systems of a loft from scratch:

• leave elements such as valves, grilles, and pipes visible, permitted by regulations; this allows for:
  • easy inspection of the systems;
  • creating an aesthetic solution perfectly integrated with the characteristic style of the loft (which already exposes other structural elements, such as exposed bricks, pillars, etc.);
  • savings on the necessary masonry work;
• integrate the systems into the existing elements of the loft’s structure; this solution also helps contain costs and integrates with the aesthetic appearance;
• create a floating or raised flooring, meaning a floor elevated a few centimeters above the existing one, under which to insert the system elements; this solution offers several advantages:
  • allows for easy distribution of the systems in every point of the home, including central spaces, typically large in lofts, and allows for easy inspection for maintenance interventions;
  • moreover, it is an aesthetically versatile solution, allowing for customization of the floors in line with personal tastes and stylistic preferences.

The Mezzanine

An essential feature of the loft, as already mentioned, is the significant height of spaces, which makes the use of mezzanines a frequent choice in design.

To learn more, read also: How to design a two-room apartment: the complete technical guide

Example of a loft project

The proposed project starts from the need to reuse a disused space, originally dedicated to production activities, and to reconvert it into a residential accommodation for a family of 4 people.

The current state is characterized by a large completely open space, with exposed steel structure, perimeter walls in bricks, and large openings. The floor area is approximately 145 m² and the floor-to-ceiling height is 6.20 m.

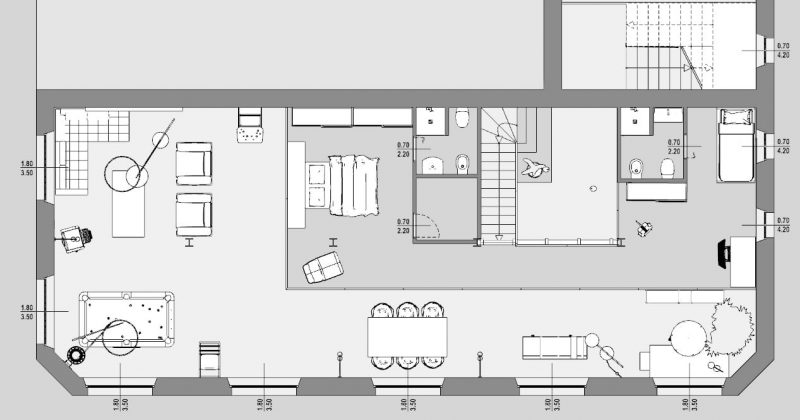

Plan

All design choices have been made to enhance the existing spaces and materials, trying to minimize alterations to their characteristics: brick surfaces have been left exposed, block surfaces have been chipped, and metal structures have been treated and painted.

The conservative choice allows the materiality of the pre-existence to emerge, enhancing a space that is already suggestive and interesting in itself.

The additional works in the project follow the principle of recognizability of the intervention, making the design gesture evident in relation to the starting substrate. The new volumes, recreated within the large existing container, stand out for the vibrancy of the colored enamels that contrast with the existing walls in texture and color.

To make the most of the spaces and optimize the internal height, a mezzanine has been designed, consisting of a metal structure attached to the existing columns. Access to the mezzanine is via a staircase located near the entrance, and through a panoramic walkway that offers an appealing view of the entire internal space, one can access the two bedrooms.

The sleeping area, while maintaining a certain degree of privacy, recreated with furnishings and a full-height bathroom block, remains open to the underlying living area. The promiscuity of functions, in fact, is a constant characteristic in the design of a loft, imposing a way of living that is unconventional yet suitable for the easy and fast style of contemporary life.

The project, therefore, remains faithful to the spatiality and vocation of the existing environment, transforming it minimally but intervening more boldly in the choice of colors (strong and contrasting shades), finishes (glossy and reflective), and especially furnishings.

The selected items are essential yet designed. From the chairs by Le Corbusier to the vintage barber chair, to details drawn from the sports field, such as the basketball hoop and scoreboard or even from the construction environment like signage and vertical signs. Finally, the industrial image is completed by the exposed copper pipes and all the systems strictly out of sight.

The 7 things to remember in the design of a loft

1. Check the habitability conditions of the space
2. Respect and enhance the nature of the existing building
3. Optimize the space with a mezzanine
4. Limit internal divisions and prefer open spaces
5. Keep systems and structural elements exposed
6. Carefully choose furnishings
7. Evaluate the most suitable heating system

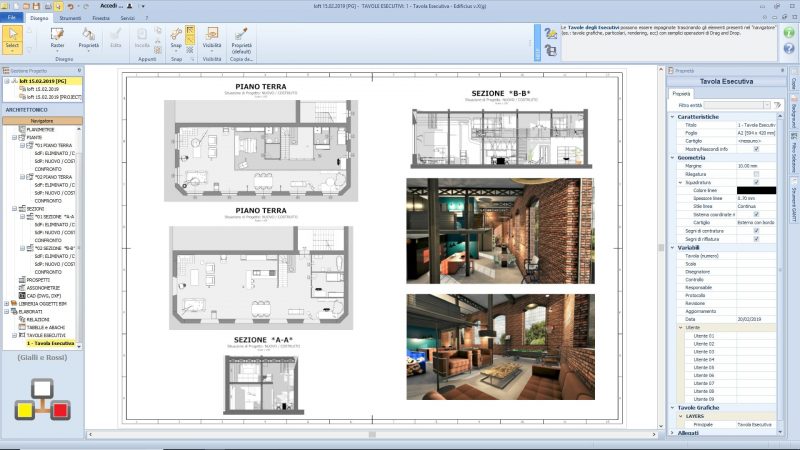

Download project drawings in DWG (floor plans, elevation views, and cross-sections) and the 3D BIM model of a loft project

Download the 3D BIM model (.edf file format) of a loft project

Download here the DWG CAD drawings of a loft project

FAQ on how to design a loft

What is a loft?

A loft is a type of housing characterized by open spaces and very high ceilings, often resulting from the conversion of disused industrial, commercial, or artisanal buildings into residences with a contemporary style.

What is the origin of the concept of loft?

The concept of loft originated in the United States, particularly in New York, where artists and creatives converted old warehouses into living spaces and studios. This phenomenon then spread to Europe in the 1990s.

What are the main types of lofts?

There are three main types of lofts: those recovered from industrial warehouses, those derived from shops, and those transformed from former offices. Each has specific characteristics related to size, height, and usability of spaces.

What are the distinctive architectural features of a loft?

The distinctive features of a loft include the absence of internal divisions, high ceilings, visible structural elements (such as beams or systems), and large windows that ensure abundant natural light.

How do you design a loft?

Designing a loft requires attention to the balance between aesthetics and functionality. It is important to enhance the original industrial elements, correctly distribute the spaces, and ensure living comfort with modern solutions.

What design ideas can be adopted to furnish a loft?

Among the most common design ideas are the use of multifunctional furniture, the inclusion of lofts to utilize height, the combination of industrial and warm materials, and the strategic use of light to enhance the environment.

How do you design a loft apartment?

Designing a loft apartment involves several fundamental phases: preliminary analysis of the space, definition of the floor plan, possible design of a loft, choice of materials and finishes, design of lighting and systems, selection of furnishings, and integration of smart and sustainable technologies.

What materials are used to maintain the industrial style of a loft?

To maintain the industrial identity of a loft, materials such as raw concrete, exposed bricks, untreated wood, metal, glass, and steel are used. These materials can be balanced with warmer elements, such as soft fabrics or wooden floors, to make the environment welcoming.

Is it possible to create a mezzanine in a loft?

Yes, if the ceiling height allows, a loft is an ideal solution to utilize vertical space. It can be used as a sleeping area or study, but it is important to respect minimum heights and ensure the structural safety of the new area.

How can artificial intelligence help in designing a loft?

AI supports loft design by generating design variants, photorealistic 3D visualizations, simulations of materials and layouts, and integrating with BIM software to improve efficiency, predictive analysis, and document automation.

What are the practical advantages of AI in loft design?

Artificial intelligence allows for better management of open spaces, optimizes natural lighting, speeds up style definition, suggests solutions to utilize heights, and harmoniously integrates structural elements with furnishings.

What are the challenges in transforming a warehouse into a loft?

The main challenges are related to the dimensions of the structure, the necessary renovation interventions, compliance with urban and cadastral regulations, as well as energy efficiency. It is also essential to evaluate thermal insulation and the correct distribution of spaces.

How to design heating and lighting systems in a loft?

For heating systems, underfloor heating can be considered for a clean style, while for lighting, a combination of ambient, functional, and decorative light is advisable, with pendant lamps and spotlights to enhance visible structures.
