BIM Standardization: Managing Multi-Site Projects with Localization

BIM standardization is one of the main factors for efficiency in multi-site programs based on replicable models. It allows for the definition of a common information prototype, to be reused across multiple sites, and to maintain consistency among design, construction, and asset management. However, standardizing does not mean copying the same project everywhere. Each site requires regulatory, technical, climatic, logistical, and operational adjustments.

An increasing number of contemporary construction programs are no longer about designing a single building but rather about the coordinated management of a common prototype across tens or hundreds of sites. This is the case for hotel chains applying the same brand standard across different countries, healthcare operators replicating modular hospitals in regions with different regulatory regimes, retail networks opening new stores aligned with a corporate manual, public programs standardizing schools or transport stations, residential developers industrializing housing types, and hyperscalers building data centers based on a standard design in multiple markets.

All these programs share the same underlying problem: economic value arises from standardization while feasibility arises from localization. Designing once, validating once, and replicating many times generates economies of scale, reduces risk, and accelerates delivery. However, each replica must contend with building codes, urban planning constraints, climatic conditions, available materials, local supply chain capacity, cultural sensitivities, and national BIM mandates.

Excessive standardization can lead to a non-compliant, non-functional building or one that does not meet local expectations. Excessive localization can evaporate the economic benefits of replication.

The thesis of this article is that BIM standardization can only work if it is governed as a programmatic information process, not as a simple reuse of models or files. In this perspective, ISO 19650, CDE, openBIM, IFC, BCF, bSDD, and IDS are not separate topics, but components of a single management architecture: the one that allows a master prototype to be replicated, adapted, verified, and maintained consistently throughout the asset’s life cycle.

What is BIM standardization in replicable programs?

BIM standardization is the process by which an organization defines rules, informational models, requirements, workflows, classifications, and common procedures to make project and asset management more coherent and repeatable.

In a single project, standardizing often means uniforming templates, codifications, exchange formats, naming conventions, information levels, and approval procedures. In a replicable program, however, BIM standardization takes on a broader meaning: it must govern the relationship between a master prototype and many local instances.

A replicable BIM program can be defined as a coordinated set of projects based on a common informational prototype, adapted to different local contexts. This definition is important because it clarifies that replication involves not just the geometry of the building, but also data, requirements, decision-making processes, responsibilities, information exchanges, and validation criteria.

BIM standardization, therefore, does not equal duplication of a model. It is a governance strategy that establishes what must remain unchanged, what can be localized, who can approve a deviation, how a variant is tracked, and how the information is incorporated into the organization’s information assets.

In this logic, the question is not: “can we reuse the same BIM model?” The correct question is: can we govern the relationships between a master information model and its local variants in a traceable way?

Why standardizing a multi-site BIM program does not mean copying the same project?

The most common misunderstanding is to think that a replicable program is a sequence of copies. In reality, a replicable program is a sequence of controlled adaptations.

The value of the master prototype lies in its ability to concentrate already validated decisions: layouts, technical systems, performance criteria, informational requirements, standard objects, coordination schemes, and operational logics. However, no master can be applied identically in every country or at every site.

A data center in Australia does not encounter the same authorization framework as a data center in Germany. A modular hospital replicated in multiple regions must interact with different health requirements and accreditations. A retail outlet in a historic European city must adapt to urban planning constraints that differ from those of an out-of-town retail park. A public school may have to comply with different energy, seismic, and accessibility standards depending on its location.

For this reason, effective BIM standardization does not eliminate localization. It makes it governable.

Standardizing means defining a stable information core and a controlled system of variations. The master prototype represents the core. The local variants represent the adaptations. The CDE, if configured at the program scale, is the environment where masters and variants remain connected. ISO 19650 provides the process grammar. The openBIM stack makes models, issues, classifications, and requirements portable.

The BIM Master Prototype

The BIM master prototype is the reference information model of the program. It is not just a geometric model, but a container of technical decisions, informational requirements, coordination logics, and validation criteria.

In the master prototype, the following can be defined:

• recurring spatial layouts and configurations;
• standard structural and system systems;
• BIM objects and property sets;
• classifications and nomenclatures;
• OIR, AIR, PIR, and EIR informational requirements;
• interdisciplinary coordination rules;
• delivery standards for construction and operations;
• informational validation criteria through IDS.

In a mature program, the master should not be copied and modified freely. It must be versioned, governed, and linked to its instances. When a modification to the master is approved, every active rollout should be flagged for an impact review. The team must be able to understand which sites are involved, which local variants may be conflicting, and which approvals need to be updated.

This is one of the main differences between a simple library of models and a true BIM standardization strategy.

Versioned Local Variants

Local variants are the adaptations of the master prototype required by a specific context. They may arise from fire safety regulations, energy requirements, climatic conditions, material availability, supply chain capabilities, urban constraints, national regulations, or operational choices.

A local variant should not be an independent copy of the master. It should be a versioned delta: a structured modification, justified and linked to the rule or requirement that generated it.

For example, if a national fire safety regulation necessitates a deviation from the master prototype, that deviation should be documented with:

• reference to the modified clause of the master;
• reference to the local regulation or requirement;
• involved discipline;
• decision-maker;
• approval date;
• impact on costs, timelines, permits, and operations;
• compatibility with future changes to the master.

This approach prevents variants from turning into uncontrolled fragmentation. If the master is updated, the platform can verify which variants are potentially affected. If the same deviation occurs in multiple countries, it may become a signal: perhaps the master needs correction.

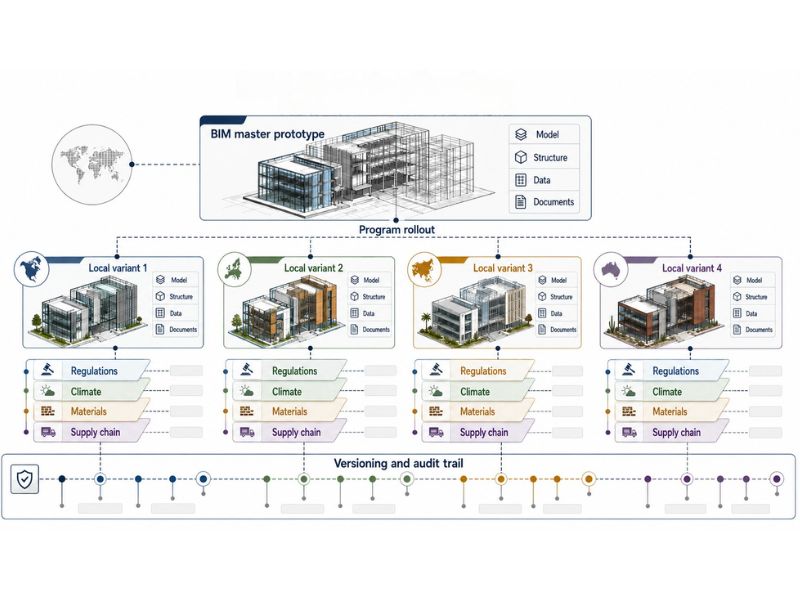

The BIM master prototype and local variants

The role of ISO 19650 in BIM standardization

The ISO 19650 series is widely cited but is sometimes reduced to a design standard. In reality, its structure is particularly useful in replicable programs, as it allows for the connection of project information, assets, and organization.

From a BIM standardization perspective, ISO 19650 is not only about defining how to exchange files or approve deliverables. It is about establishing how information should be requested, produced, verified, shared, published, and archived throughout the asset’s life cycle.

ISO 19650-1 establishes a hierarchy of information requirements that explicitly operates at the asset and program level:

• Organizational Information Requirements (OIR), i.e., the information requirements of the organization;
• Asset Information Requirements (AIR), i.e., the information requirements of the asset;
• Project Information Requirements (PIR), i.e., the information requirements of the project;
• Exchange Information Requirements (EIR), i.e., the information requirements for exchanges.

The PIR is the only requirement for design purposes. The other three exist precisely to govern the continuity of information across multiple projects on a shared asset or through a program of related assets.

For an operator managing a portfolio of assets— whether it be a hyperscaler, a national healthcare operator, a hotel chain, or a public administration managing a school building program — the OIR answers the question: what information does the organization need to make decisions about the program and the portfolio?

The AIR addresses what facility management concerns: which delivery data are needed to operate this asset over the next fifteen years?

The PIR is what the single rollout team manages. The EIR is what is imposed on every participant in the supply chain on each site.

From project CDE to program CDE

The Common Data Environment, or CDE, is often interpreted as a digital space for uploading, sharing, and approving files. This view is limiting, especially in replicable programs.

In a single project, the CDE organizes information containers, work states, revisions, approvals, and archiving. In a multi-site BIM program, the CDE must do more: it must model the relationship between the master prototype and local instances.

A program-level CDE does not treat each rollout as an isolated project environment. It treats the master prototype as an information container at the program level, with each site rollout as a child instance that inherits, localizes, and returns information. The model of the information states defined by ISO 19650 — Work in Progress, Shared, Published, Archived — operates at both the master and instance levels, with explicit propagation rules between the two planes.

The concept may seem abstract, but the operational consequences are concrete. For example, the approval of a structural revision of the master prototype should trigger an impact check on all affected rollout instances. If a national fire code requires a deviation from the master, this is recorded as a localized variant, with full traceability of the justification and linking both to the original standard and to the modified master clause. Similarly, a cross-cutting change promoted by the program operator — such as a refrigerant replacement driven by F-gas regulations, an upgrade to security systems, or an energy specification update — can be managed across the entire portfolio with audit traceability.

A project-purpose CDE cannot do this. A program-purpose CDE, properly configured, treats it as default behavior.

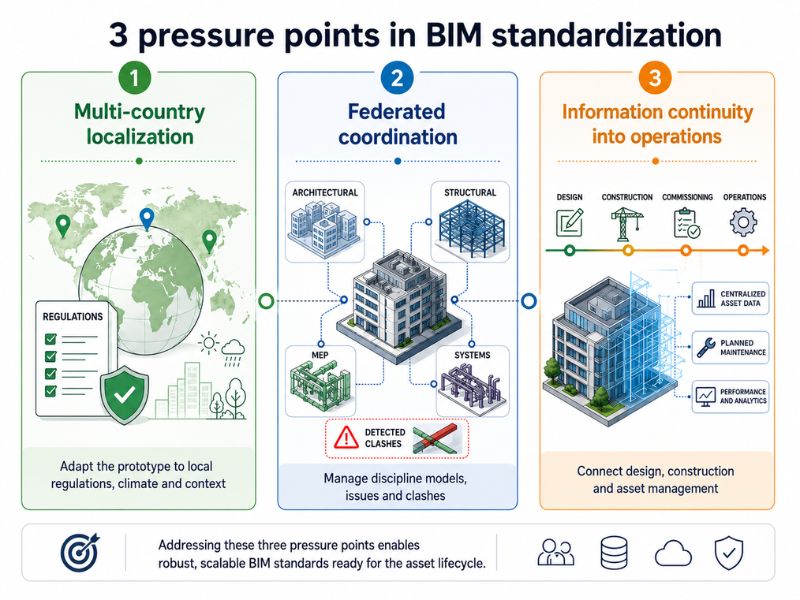

Three pressure points in BIM standardization for multi-site programs

BIM standardization becomes truly critical when it encounters three pressure points: multi-country localization, high-density federated coordination, and information continuity towards operations.

They are exemplified in the most extreme manner by hyperscale data centers, but they apply to any replication program managed in BIM.

Three pressure points of BIM standardization in replicable programs

Multi-Country Localization of the Standardized Prototype

A replicable program that distributes the same prototype across five countries faces five distinct regulatory environments even before considering any other variable.

In the case of hyperscale data centers, the Australian National Construction Code and the construction certification path of New South Wales are not interchangeable with German building regulations. Indian CPWD specifications govern intersections with public infrastructure in ways that European standards do not anticipate; Malaysian fire safety standards and the Mexican NOM regulatory family impose specifications that touch the prototype at different points. The same logic applies to hospital programs (national health accreditation regimes), school programs (regional safety and accessibility requirements), retail chains (urban and historical center regulations), and transportation infrastructure (technical specifications from managing entities). Above all this layers the regulatory drift towards national BIM obligations: the Portuguese BIM obligation by 2030 under Resolução do Conselho de Ministros n.º 89/2026, the Italian thresholds of DM 312/2021, the UK BIM Framework, the German BIM Strategy, and emerging obligations in NSW and Singapore.

A program-level CDE manages this plurality through versioned localization: the master prototype lives in the root of the program, each national instance carries its own localization delta, and the delta itself is a versioned and auditable artifact. When local regulation imposes a deviation, that deviation is not a copy of the master with changes; it is a structured variant whose relationship with the master remains explicit and queryable. If the master is updated, the variant is automatically checked for compatibility and conflict, and the design studio is notified of any instance that may require re-validation.

This is the difference between a CDE that hosts files and a CDE that models the structural relationship between a master design and its variants at the program scale. The former scales linearly with effort; the latter scales sublinearly because the platform itself encodes the propagation rules.

Federated Coordination on High Plant and Disciplinary Density

The second pressure concerns coordination. In complex programs, the issue is not only to produce BIM models but also to continuously coordinate many disciplines.

The plant density of a data center is not comparable to the MEP of a conventional building. Electrical distribution must ensure redundancy. Cooling systems can combine chilled water, CRAH units, liquid cooling, and free cooling. Fire safety can integrate early detection and suppression systems. The network fabric can impose path density that interferes with plants, structures, and architecture. This principle extends to many other assets: hospitals, pharmaceutical laboratories, semiconductor factories, transportation infrastructure, energy plants, airports, and large public complexes.

A federated BIM workflow on this type of program typically involves twenty or more continuously coordinated disciplinary models, with hundreds of clashes and constructibility issues in transit through resolution at any moment. The BIM Collaboration Format (BCF) is the operational language of this coordination, but only when the CDE treats BCF as a first-class workflow object, not merely as a file attachment. Issues must be assignable beyond organizational boundaries, traceable to model versions, linkable to design decisions of the master prototype, and queryable across program instances to detect recurring patterns — a clash that appears in three rollouts out of twelve is not a coincidence; it is a design issue at the master level masked as a local problem.

The native openBIM management of the BCF, of the type implemented in environments like usBIM.bcf, exists for this reason: to give program delivery the same operational rigor on coordination issues that the industry has long applied to drawings and documents.

Verifiable Continuity of Information Between Design, Construction, and Operations

The third pressure pertains to information continuity. A complex asset does not end with the handover of the construction site.
A data center can have an operational life of fifteen to twenty years. A hospital may remain operational for decades. A transportation infrastructure can have an even longer life horizon.

In these cases, the delivery of information is not a formal closure procedure. It is the foundation of the operational digital twin, maintenance, retrofit, and portfolio management.

The problem of delivery is acute precisely because the design and construction information have been generated in a program context, but are handed off to operations that will manage the asset for a decade or more. The CDE must preserve not only the as-built model but the trace of the motivations — which regulatory clause guided, which design decision, from which version of the prototype does this instance derive, against which standards were the equipment specifications validated.

Here comes into play the Information Delivery Specification, or IDS, published by buildingSMART as a machine-readable schema for specifying and verifying informational requirements. IDS transforms OIR, AIR, PIR, and EIR from subjectively interpretable PDF documents into automatically verifiable rules on IFC models.

For a replicable program, the consequence is strategic: the information requirements of the master prototype are expressed once as a program IDS, each localized instance can add its own delta IDS, and every information exchange throughout the asset’s life — from designer to builder, from builder to facility manager, from facility manager to the next retrofit — is automatically validated against its own IDS.

In practice, this means that the delivery to operations ceases to be a single event (an export, a file transfer, a checklist) and becomes continuous validation: the Asset Information Model must meet an IDS that is the machine-readable translation of the AIR. The same logic applies during construction: each progress state can be validated against the IDS that expresses the EIR for that phase. And during the evolution of the master prototype: when the program updates the master IDS, every instance is automatically flagged for emerging non-compliance. It is the difference between requirements as text written in a PDF and requirements as verifiable rules on the model.

BIM standardization and geospatial integration

The geospatial dimension completes BIM standardization when an operator manages a portfolio of assets distributed across multiple countries: site analytics for selection, fiber routing in data centers, or accessibility in hospital and retail programs, validation of climate-driven energy strategy, post-occupancy telemetry against performance targets (PUE and WUE in data centers, EPC indicators in residential, clinical indicators, and energy efficiency in hospitals).

For this reason, a truly program-grade BIM standardization strategy should integrate BIM data with geospatial data. Platforms like usBIM.geotwin integrate the geospatial dimension within the BIM environment rather than treating it as an external GIS layer — a structural choice that materially impacts how a program manages siting decisions and post-occupancy performance across a global portfolio.

The logic is simple: a replicable program does not exist solely in models, but in the places where those models become physical assets.

Data sovereignty as design decision of the CDE

A theme often underestimated in conversations about CDE selection is data sovereignty. In multi-jurisdictional programs, the physical location and legal governance of the data environment are not IT details. They are program decisions.

This is especially true for data centers, healthcare, critical infrastructure, defense, public administration, and commercial programs with sensitive design know-how.

An operator distributing the same prototype in multiple countries must know where the data resides, under which jurisdiction it is processed, what access policies apply, how the audit trail is managed, and what guarantees exist in terms of compliance.

In programs that cross multiple jurisdictions, hosting the entire design corpus on a CDE physically located outside the destination jurisdictions creates an exposure that legal and compliance functions are increasingly less willing to accept.

The question is operational: where does the CDE operate, under what law, with what audit trail, with what data residency configurability? For an operator whose master prototype contains commercially sensitive engineering, and whose national instances may contain regulated technical information, the answer to that question is part of program governance, not a footnote.

This favors CDE providers with configurable data residency, transparent jurisdictional disclosure, and independent proprietary structures that do not intertwine the CDE with adjacent platform interests. It also tends to favor providers based in jurisdictions with established information protection frameworks, rather than in jurisdictions where data sovereignty is retrofitted over pre-existing infrastructures. For particularly European design firms and operators, this consideration is shifting CDE selection from a purely capability decision to a hybrid capability-and-governance decision.

The implication for program delivery is that CDE selection cannot be entirely delegated to the BIM function. It must be a joint decision between BIM leadership, legal, compliance, and the corporate function responsible for information security strategy.

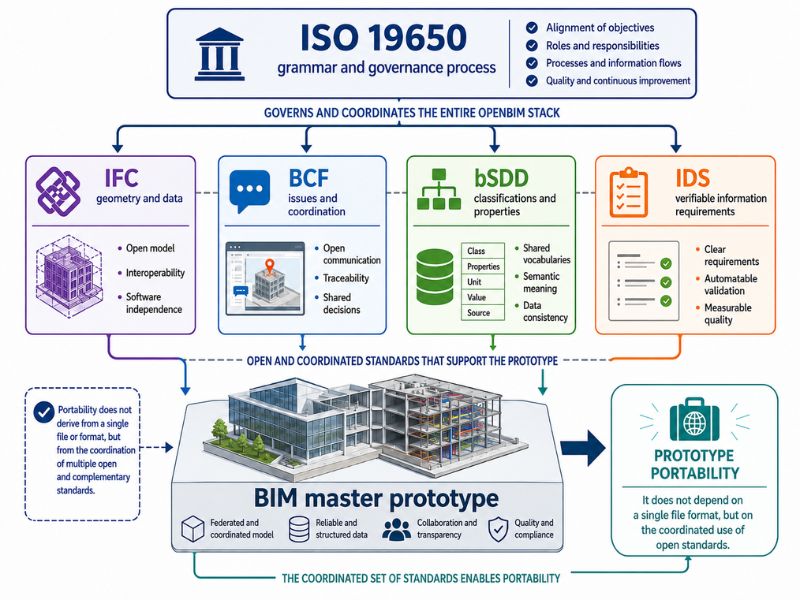

The standardized prototype in practice: openBIM as an enabler of portability

The standardized prototype only works if it is genuinely portable — across design firms, geographies, software ecosystems, and the entire operational life of the asset. Portability is not an aspiration; it is an engineering consequence of the openBIM stack, applied correctly.

IFC, BCF, bSDD, and IDS serve different but complementary roles:

• IFC governs geometries, objects, and data;
• BCF governs issues and coordination;
• bSDD governs dictionaries, classifications, and properties;
• IDS governs verifiable information requirements.

ISO 19650 stands above these standards as process grammar. Without ISO 19650, the openBIM stack risks remaining a set of technical capabilities. With ISO 19650, it becomes part of an information delivery method.

Three pressure points of BIM standardization in replicable programs

IFC4 for the portability of the prototype

IFC4 is the reference for making the model readable and exchangeable in an open manner. In a replicable program, however, it is not enough to export to IFC at the end of the design phase. The master must be designed from the beginning to be portable, verifiable, and federatable.

A prototype built solely on proprietary formats risks lock-in. A prototype structured according to openBIM logic can be opened, controlled, enriched, and maintained over time even when software, teams, or suppliers change.

For programs designed to last longer than individual vendors and design studios, this portability is not an accessory benefit. It is a condition of continuity.

BCF for issues and coordination

The BIM Collaboration Format (BCF) extends this principle into the domain of coordination and issues. BCF allows clashes, design intents, and review issues to move between authoring environments without losing context — essential when the master prototype and its national instances can be addressed by multiple design studios throughout the program’s life, and when the operator inheriting the asset may not necessarily be a client of the same authoring software used by the designer.

bSDD for classifications and properties

The buildingSMART Data Dictionary (bSDD) addresses perhaps the most underestimated aspect of the multi-country rollout: the drift of classification and property nomenclature. The master prototype is classified against a taxonomy; the German variant must align with a set of national conventions, the Indian one with another, and the Australian one with a third.

Without a structured dictionary to mediate these classifications, the variants diverge silently from the master in their informational structure even when the geometry remains aligned. bSDD provides the mediation layer; the CDE must consume it natively.

IDS for verifiable information requirements

The Information Delivery Specification (IDS) is the most recent piece and, in many ways, the most strategically relevant for program delivery. While IFC is the model format, BCF the coordination format, and bSDD the classification dictionary, IDS is the format for information requirements: it expresses in a machine-readable form what the model must contain to be accepted in a given exchange.

For a replicable program, IDS is what prevents localized variants from silently diverging from the master’s requirements: each national instance can add localized IDS, but must still comply with the program IDS. It is the difference between requirements expressed as text in a PDF and requirements as verifiable rules on the model — the difference, ultimately, between declared governance and verifiable governance.

CDE platforms natively openBIM and BIM standardization

A CDE platform designed natively around the openBIM stack can make BIM standardization more manageable compared to a platform that treats interoperability as simple export.

In this sense, solutions like usBIM.platform can be presented as environments designed to connect IFC models, BCF issues, bSDD dictionaries, IDS requirements, information workflows, and ISO 19650 logics.

The value of the platform does not lie in simply uploading documents. It lies in the ability to govern information, versions, responsibilities, requirements, federated models, local variants, and continuity toward operations.

For a single project, a project-grade CDE may be sufficient. For a replicable program, however, a programme-grade logic is needed.

The difference is this:

• a project CDE organizes the informational delivery of a project;
• a program CDE governs the controlled replication of a prototype across multiple instances;
• a programme-grade CDE must connect standardization, localization, openBIM, and data governance.

Checklist to assess BIM standardization in multi-site programs

For a BIM Director or a digital construction lead evaluating a CDE for the delivery of a replicable BIM program, the following questions tend to separate platforms operating at programme-grade from those operating at project-grade:

• Does the CDE natively model the relationship between a master prototype and its instances on a program scale, or does each instance live as an independent project environment?
• Is the versioning of the master prototype structurally separated from the versioning of localized variants per country, with explicit propagation rules between the two levels?
• Does the platform natively support multi-model federated coordination with IFC4, or only through conversion?
• Is BCF managed as a first-class workflow object, with cross-program interrogability, or as a file attachment?
• Are OIR, AIR, PIR, and EIR at the program level expressed as machine-readable specifications (IDS) that can be automatically validated against the models, or stored as PDF documents?
• Does the CDE support continuous validation of the Asset Information Model against IDS throughout the asset’s lifecycle, or only the export of the as-built model at the time of handover?
• Does the audit trail meet the security-minded approach defined in ISO 19650-5, including role-based access traceability and information classification?
• Is data residency configurable for program or site, with transparent disclosure of jurisdictional governance?
• Is the openBIM compliance of the platform demonstrable through buildingSMART certification, or only declared in marketing?
• Does the jurisdictional and proprietary structure of the platform vendor align with the data sovereignty requirements of the program’s target markets?

These questions do not have universally correct answers. They have correct answers for the single program, and the work of program governance is to explicitly define those answers before selecting the CDE, not to discover them midway through the rollout. A CDE that supports this work transparently — exposing its capabilities at the program level for evaluation rather than burying them — is the one that earns its place in program delivery.

The standardized prototype is the economic architecture of replicable BIM programs — from hyperscalers applying it in its most extreme form, to hotel chains, public healthcare systems, transport networks, school construction programs, and any operator wanting to balance scale economics and local adaptation.

The program-grade CDE, built on ISO 19650 and the openBIM stack (IFC4, BCF, bSDD, IDS), is the architecture of how that model becomes physically deliverable across countries, regulations, and decades. The two are inseparable.

The true objective is not to have a standard model. It is to maintain governable relationships between standardization and localization.

When this relationship is clear, BIM standardization enables designing once, controlling validation, replicating consistently, and managing assets over time. When this relationship is not governed, the program fragments: each site becomes an autonomous copy, variants lose traceability, and the value of replication gradually declines.

For this reason, in replicable BIM programs, standardization is not just a technical choice. It is a delivery, governance, and value management strategy throughout the entire lifecycle of the asset.

FAQ on “BIM Standardization in Replicable Programs”

What is meant by BIM standardization?

BIM standardization is the process by which an organization defines rules, informational models, requirements, procedures, and common criteria to consistently manage projects and assets. In replicable programs, it does not mean using the same model every time, but rather establishing which elements must remain unchanged, which can be adapted, and how to control local variants.

Why is BIM standardization important in replicable programs?

In replicable programs, value arises from the possibility of designing, validating, and reusing an informational prototype across multiple sites. Without a BIM standardization strategy, every new replica risks becoming an autonomous project, leading to a loss of coherence, an increase in uncontrolled variants, and a reduction in the economic benefits associated with repeatability.

Does standardizing a BIM model mean copying it across multiple projects?

No. Copying a BIM model across multiple projects does not equate to standardizing. A replicable program requires regulatory, technical, climatic, and operational adaptations. BIM standardization is precisely aimed at governing these adaptations, keeping the relationship between the master prototype and its local variants traceable.

What role does the BIM master prototype play?

The BIM master prototype is the informational reference of the program. It includes not only geometries but also requirements, properties, classifications, validation criteria, and coordination logics. Its value lies in its ability to concentrate already approved decisions and make them reusable without losing control over the changes introduced at different sites.

How are local variants managed in a BIM program?

Local variants should be managed as versioned and motivated changes, not as independent copies of the master. Each deviation must be linked to the requirement that generated it, the involved discipline, the approval decision, and the effects on authorizations, costs, timelines, and asset management.

What is the relationship between BIM standardization and ISO 19650?

ISO 19650 provides the process logic for requesting, producing, verifying, sharing, and archiving information throughout the asset’s life cycle. In replicable programs, it helps link organizational requirements, asset requirements, project requirements, and exchange requirements, making information governance more structured.

Why is the CDE central to BIM standardization?

The CDE is the environment where information, models, revisions, approvals, and variants are managed in a controlled manner. In a replicable program, the CDE should not just host files: it should help maintain the relationship between the master prototype, local instances, issues, informational requirements, and data intended for operational management.

How does openBIM support BIM standardization?

openBIM allows the prototype to be more portable across software, teams, disciplines, and life cycle phases. IFC supports the exchange of geometries and data, BCF manages issues, bSDD ensures consistency of classifications and properties, while IDS allows for the expression of verifiable informational requirements on models.

What is the purpose of IDS in replicable BIM programs?

IDS allows for the description of informational requirements in a way that can be verified by software. In a replicable program, it can help ensure that each local instance continues to meet the requirements of the master and that informational exchanges are consistent with what is required at different stages, from design to asset management.

Why is data sovereignty important in choosing the CDE?

In programs distributed across multiple countries, the physical location of data, applicable jurisdiction, access policies, and audit trail become strategic aspects. The choice of the CDE is not only about BIM functionalities but also about security, compliance, information governance, and the ability to protect sensitive technical data.
