Managing IDS Files in Revit: A Practical Guide

In Building Information Modeling (BIM), maintaining consistent, high-quality project information is critical to successful delivery. As projects grow in complexity, the need for clear, standardized information exchange has led to the adoption of Information Delivery Specification (IDS).

When working in Autodesk Revit—one of the most widely used BIM authoring tools—effectively managing IDS files can be the key to ensuring compliance with EIR (Exchange Information Requirements) and avoiding costly inconsistencies.

Understanding how to handle IDS files in Revit is therefore essential. This guide explores the main challenges, highlights the benefits, and introduces a powerful solution to streamline the process: usBIM.revolution, a plugin that extends Revit’s capabilities by enabling seamless model synchronization and IDS validation.

What is an IDS file and why is it important in Revit?

An Information Delivery Specification (IDS) is a standardized document that defines the specific data required for a BIM project, ensuring to all stakeholders clearly understand what information must be delivered at each stage. This becomes especially important when working with Industry Foundation Classes (IFC) files, a widely adopted format for sharing BIM models across different software platforms.

Within Autodesk Revit, IDS files play a key role in:

• standardizing data, ensuring that the information within the Revit model meets specific requirements;
• enhancing interoperability between Revit and other BIM platforms;
• performing automatic compliance checks, reducing errors in the early stages of the project.

The challenges of managing IDS files in Revit

Working with IDS files in Revit is not without its challenges. Among the main ones:

• complexity of specifications: managing IDS files requires understanding and mapping a wide range of information requirements. This can become a burdensome task, especially in large-scale projects with many stakeholders;
• difficulties in parameter mapping: ensuring that the properties of Revit elements conform to those specified in the IDS can be complex. Users often face intricate classifications and property mappings to meet standards;
• software limitations: although Revit is a powerful tool, its native capabilities in managing IDS files can be limited. Users may require additional plugins or tools to validate, modify, and synchronize data according to IDS requirements;
• validation challenges: automated validation tools may not cover all aspects of IDS requirements. This can lead to gaps in data compliance, discovered only in later phases of the project, increasing the risk of costly reworks.

Managing the IDS file in Revit and IFC models with usBIM.revolution

usBIM.revolution is a plugin for Revit that synchronizes the RVT file of the Revit software on the desktop with the corresponding IFC file in the cloud. This file can be used for all openBIM processes within a Common Data Environment (CDE), relaying changes, issues, and model-related information directly into Revit and the RVT file.

This methodology also applies to managing the Information Delivery Specification (IDS) files, which allow you to request specific information from the IFC model and manage it directly in Revit, keeping the information required by the IDS file aligned.

With usBIM.revolution, it is possible to modify the properties of entities in the synchronized IFC file in the cloud, directly from the RVT file in Revit on the desktop.

Modification of IFC properties – Edit and add IFC properties directly in Revit using usBIM.revolution

After making the changes, you can export the IFC file with the new information added directly from the synchronized model.

Furthermore, the synchronization between the RVT file and the IFC file in the cloud occurs automatically. Any modifications made to the RVT file in Revit can be reflected in the IFC file in the cloud, and vice versa, ensuring a consistent and coherent workflow between the two formats.

Cloud integration with Revit – View of the integration between Revit and the IFC file in the cloud for openBIM management

Viewing the Structure of the IFC File in Revit

The structure of the IFC file saved in the cloud is viewable directly within Revit, allowing for a precise control of model information.

usBIM.revolution User Interface – Visualization of the synchronization process between the RVT and IFC files

It is possible to validate the informational content of the model using an IDS file, selectable from the cloud. In this way, the compliance of the required information is verified directly in Revit.

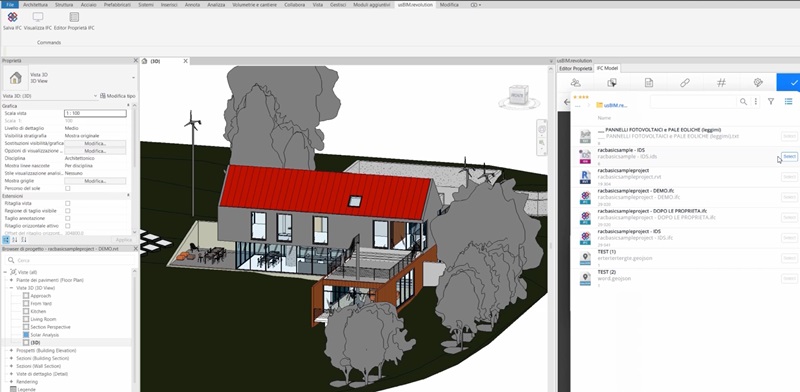

Uploading the IDS file in Revit: the XML formatted file is directly uploaded into Revit to obtain the information on the properties and entities that do not meet the informational requirements

Editing and managing IFC model properties

The validation process allows you to identify, modify, add, or delete IFC properties directly from Revit. Thanks to the IDS file, all inconsistencies in the IFC file are immediately detected, and missing properties can be edited directly within the software.

It is also possible to add new properties or correct existing ones, ensuring the full compliance of the model with the information specifications.

Checking inconsistencies in the IFC file – Reporting inconsistencies between the RVT and IFC files through the IDS file

Validation and Reporting of Inconsistencies in the RVT Model

Through the IDS control file in XML format, Revit automatically reports inconsistencies between the RVT model and the IFC file synchronized in the cloud. This process facilitates the validation of the model directly in Revit, using the usual software to ensure the accuracy of the information required by the IDS file before delivering the IFC model to the client.

Validation of the IDS file in Revit – Information content validation screen via IDS file

Advantages of Using IDS Files in Revit

To fully leverage the benefits of using the IDS in Revit, one can rely on the advanced tool usBIM.revolution with usBIM.IDS, which simplifies the management of information specifications, ensuring model compliance and optimizing BIM workflows.

What are the advantages of integrating a valid Revit plugin for IDS management?

• improvement of model quality: using an IDS file ensures that the Revit model meets the required standards from the outset. usBIM.revolution further enhances this process by offering real-time validation, identifying errors in advance, and ensuring that the final model is of the highest quality​;
• efficiency in terms of time and costs: automating the validation and synchronization process with usBIM.revolution reduces the need for manual checks, saving time and resources. This reduces the overall project costs, minimizing the risk of rework due to data inconsistencies​;
• improved collaboration and communication: aligning all stakeholders around a standardized IDS file allows teams to communicate more effectively. usBIM.revolution supports this collaboration by providing a seamless interface between Revit and the cloud, keeping everyone updated​;
• compliance and risk reduction: ensuring that the Revit model complies with the IDS reduces the risk of non-compliance. The automated checks from usBIM.revolution provide peace of mind that the model meets client expectations, minimizing the risk of errors during project delivery​.

Managing IDS files in Revit can be a complex task, but with the right tools, it becomes much more manageable. usBIM.revolution offers an innovative solution that simplifies the synchronization, validation, and management of IDS files, making it easier for BIM professionals to ensure that their models are accurate, compliant, and ready for delivery.

If you are a Revit user looking for a more efficient way to manage IDS files and ensure seamless integration with IFC models, usBIM.revolution is the tool you’ve been waiting for. It not only enhances Revit’s native capabilities but also introduces new levels of automation and efficiency into your BIM workflows.
