Flexible Solar Panels: The future of renewable energy

Flexible solar panels are thin-film photovoltaic modules, lightweight and bendable up to about 30°, designed to fit non-traditional surfaces — curved, irregular, or mobile — and to produce energy even where rigid panels cannot be installed. Thanks to these characteristics, they find application on buildings, vehicles, temporary structures, and portable devices, becoming one of the most interesting solutions for the evolution of integrated photovoltaics.

The growing spread of solar energy and its numerous advantages — energy efficiency, sustainability, autonomy from electrical grids — are pushing the sector towards increasingly versatile technologies. In this context, research and development aim to continuously improve the efficiency and durability of solar cells, making them more compact and suitable for everyday applications such as phones, vehicles, or smart devices.

Among the most significant innovations are flexible solar cells, capable of bending and curving around objects and transforming panels into true photovoltaic sheets, even available in rolls.

The photovoltaic cells remain the basic element of solar energy production, and their performance is influenced by environmental variables such as temperature and solar radiation. For this reason, it is essential to conduct a comprehensive analysis of the specific climatic context to understand how these variables can impact the performance of photovoltaic panels. This may include acquiring climatic data from solar atlases or from field measurements using a photovoltaic software.

To better understand why flexible solar panels are becoming such a widespread solution, let’s analyze what they are and what characteristics make them so versatile.

What are flexible solar panels

Flexible solar panels are special photovoltaic modules for the production of electricity that have the peculiarity of being able to be bent up to 30 degrees.

Flexible solar panels are made of flexible materials that allow them to adapt to curved or irregular surfaces. This flexibility makes them ideal for applications where traditional solar panels cannot be used, such as on vehicles, clothing, or curvilinear architectural structures, and in all those mobility situations where we need electrical energy but do not have the possibility to connect to the grid.

They also offer greater installation versatility and can be more resistant to impacts and vibrations compared to their rigid counterparts.

How do flexible solar panels integrate into modern architectural design?

The integration of flexible solar panels into modern architectural design represents one of the most interesting evolutions of photovoltaics applied to building envelopes. Unlike rigid modules, these panels adapt to curved, irregular, or unconventional surfaces, offering designers much greater compositional freedom. Surfaces such as wavy roofs, lightweight membranes, continuous facades, or dynamic architectural elements can become active surfaces without altering the original aesthetics.

This flexibility allows for the utilization of portions of the building that are normally unused for energy production, especially in dense urban contexts where flat roofs are occupied by equipment. Canopies, parapets, sunshades, and vertical surfaces can be covered with thin and lightweight modules, contributing to distributed production without introducing significant loads on the structure.

Another relevant aspect is the ability of flexible panels to integrate into contemporary architectural logics, which tend towards increasingly continuous and homogeneous envelopes. The absence of rigid frames and the possibility of application through adhesives or lamination allow for clean and minimal solutions, suitable even for buildings characterized by aesthetic constraints or particular material choices.

For further insights on integration strategies in facades, we recommend taking a look at the article on advantages, types, and installation methods of photovoltaics in facades.

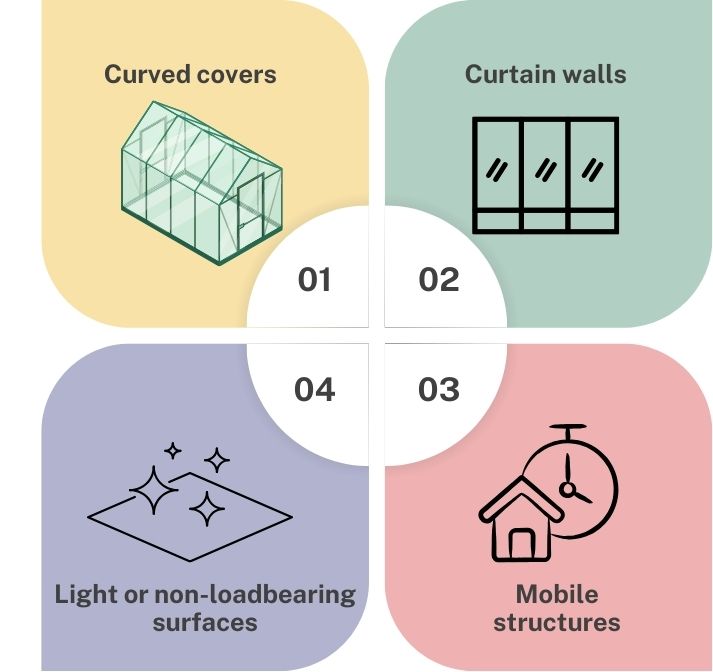

Installation of flexible solar panels

BIM Modeling for Flexible Photovoltaic Plant Layouts

BIM modeling significantly simplifies the design of flexible photovoltaic plants, especially when working on curved surfaces or non-standard geometries. Unlike rigid technologies, flexible panels require a more accurate analysis of the installation surfaces, orientations, and interference points with other elements of the envelope. BIM allows for coordinated management of these variables, providing an accurate digital model to verify the feasibility of the intervention in advance.

Through parametric tools, it is possible to map the exact curvature of surfaces, simulate the arrangement of modules, assess solar irradiation for different configurations, and predict potential shading generated by architectural or plant elements. At the same time, coordination between different disciplinary models allows for immediate identification of any interferences with roofing layers, substructures, ducts, or safety devices.

BIM also proves useful in the execution phase: it allows for the generation of accurate documents, automatically updated calculations, and informative models to be used on-site for the correct installation of the modules. In renovation projects, moreover, BIM facilitates the analysis of existing surfaces and the assessment of compatibility between the new flexible panels and the actual conditions of the envelope.

Structural Considerations for Installing Flexible Solar Modules

The installation of flexible solar panels requires different structural assessments compared to traditional photovoltaic modules, especially because weight, fastening methods, and aerodynamic behavior change. Lightness is one of the main advantages of this technology: in many cases, the weight can be about 70–80% lower than a rigid module, with an almost negligible impact on the permanent load of the building. This allows them to be installed even on existing structures with reduced load-bearing capacity or on roofs that could not support conventional systems.

A fundamental aspect concerns the fastening methods. Flexible panels do not require metal frames or anchoring structures; they are often applied using adhesives, lamination, or direct integration into roofing materials. This eliminates perforations of waterproof membranes and reduces the risk of infiltrations, but requires careful verification of adhesion to the substrate, the conditions of the membrane, and the compatibility of materials.

From the perspective of wind actions, the absence of protruding elements limits uplift effects, reducing aerodynamic pressure on the surface. However, it is necessary to verify the resistance of the adhesive or bonding system, especially in areas subjected to intense gusts or in tall buildings.

Additionally, the following should be considered:

• the thermal expansion of the substrate;
• the potential deformability of the curved surface;
• the need for access routes for maintenance;
• the integration with lifelines or fall protection devices.

Comparison Between CIGS and Amorphous Silicon Technologies for Curved Surfaces

The choice of the most suitable photovoltaic technology for curved surfaces mainly depends on the flexibility of the material, efficiency under non-optimal conditions, and behavior on thin or deformable substrates. The two most common solutions for flexible solar panels are CIGS cells (copper, indium, gallium, and selenium) and amorphous silicon (a-Si), both characterized by thin films but with different performances and applications.

CIGS cells generally guarantee a higher efficiency level compared to amorphous silicon and maintain good performance even in the presence of diffuse light or non-optimal angles of incidence. For this reason, they are suitable for curved surfaces exposed to variable irradiation, such as domes, canopies, or slightly undulating metal roofs. They also offer good mechanical flexibility while maintaining high energy density.

Amorphous silicon, on the other hand, is less efficient but much more flexible, with particularly stable behavior in bending cycles and applications on very irregular surfaces. This is a non-crystalline version of silicon and represents an excellent alternative to traditional wafers, with high resistance to moisture and the absence of toxic materials. It is therefore ideal in contexts where curvature is pronounced or where extremely tight installation to substrate materials is required.

In general, CIGS panels are preferable when seeking higher energy yield on moderately curved surfaces, while amorphous silicon is more suitable for very flexible, lightweight, or difficult-to-structure surfaces. For an in-depth look at the characteristics of this material, read the article “Amorphous Photovoltaic Panel: Features and Advantages”.

Flexible solar panels: applications

The first examples of non-flat solar cells are found in the implementation of photovoltaic systems on building roofs in historic centers (solar tiles) or for curved roofs. However, these panels were still rigid, albeit curved in shape. Thanks to flexible cells, the new generation of solar panels adapts to all types of roofs, of any shape and material.

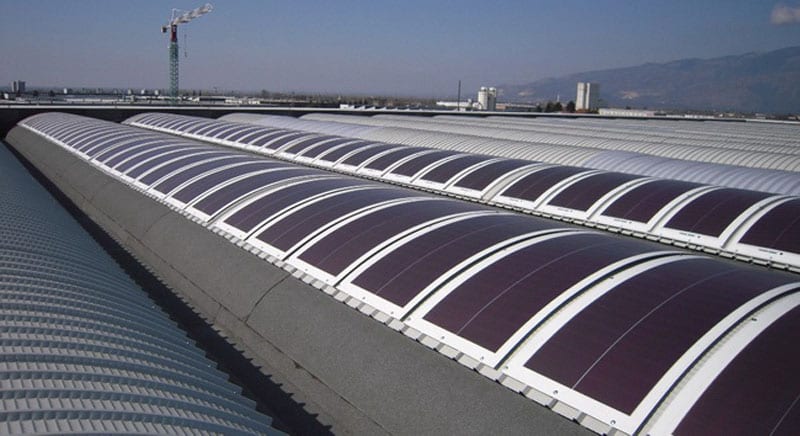

Flexible solar panels: curved roofs

In large metropolises, they are already widely used as coverings for the vertical walls of buildings and skyscrapers. This overcomes the difficulty of finding large horizontal surfaces where they can be installed. In fact, the few flat surfaces on the top of buildings are often occupied by systems (air conditioning, fire protection, radio/TV antennas, etc.).

Flexible solar panels: vertical walls

Flexible solar panels find an ideal application in all situations where it is necessary to have electricity without a stable connection to the grid. Thanks to their lightweight, portability, and ability to be mounted on unconventional surfaces, they represent an extremely versatile solution for mobile or temporary scenarios.

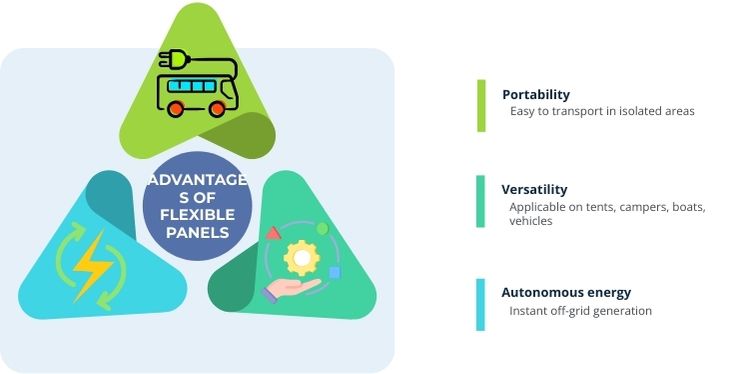

Advantages of flexible panels in temporary structures

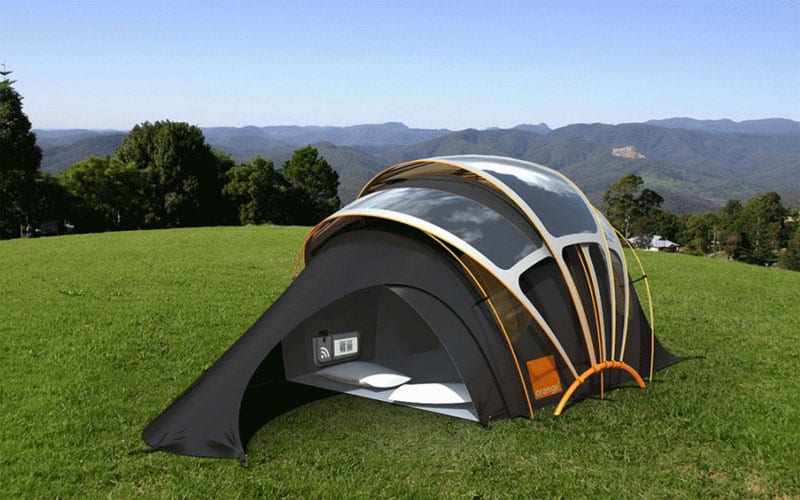

The radical innovation offered by this technology lies in its easy portability because these panels/cells are lightweight and therefore portable: they can be taken on trips, camping, and to hard-to-reach areas. Moreover, they can be applied to all means of transportation, from boats to bicycles. This way, you can have a source of energy anywhere, to use for charging portable batteries or powering any electronic device.

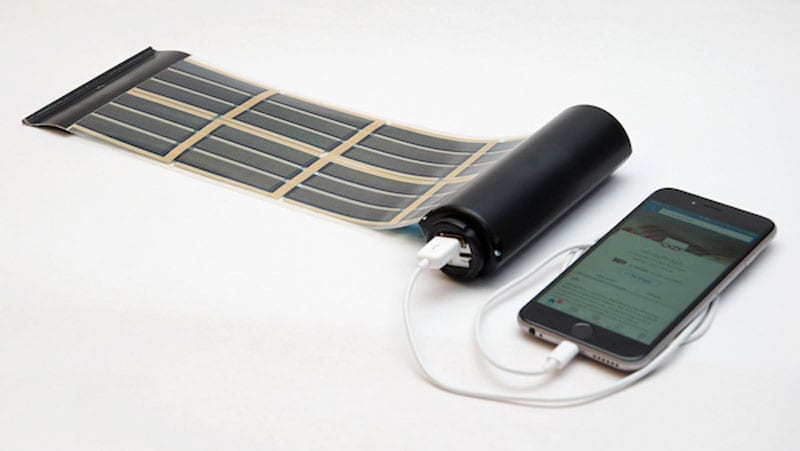

Portable flexible solar panels

In emergency or civil protection contexts, flexible modules are used to power temporary stations, telecommunication systems, or lighting, without the need for permanent installations. They are also widely used in outdoor activities, scientific expeditions, and mobile construction sites, where the availability of a lightweight and quick-to-install energy source represents a significant operational advantage.

Another area of application is temporary events — fairs, artistic installations, traveling exhibitions — where flexible panels allow for the creation of autonomous energy solutions without interfering with the logistics or safety of the structures.

Continuous research has also led to the market introduction of sheets with solar cells of any size and with a truly negligible weight; the most efficient can even be applied like stickers on any surface.

Best practices for maintaining flexible solar panels in challenging environments

Flexible solar panels are designed to withstand mechanical stress and vibrations, but they still require specific attention when used in particularly demanding environments. High temperatures, prolonged exposure to UV rays, salt, dust, and extreme weather conditions can affect their durability and performance over time.

The first best practice is to periodically check the integrity of the support and the fixing points. Unlike rigid modules, flexible panels are often applied using adhesives or lamination: it is therefore essential to verify that no bubbles, detachments, or areas where the surface does not adhere properly to the substrate have formed.

In dusty environments or those subject to salt deposits, it is advisable to carry out regular cleaning with fresh water and neutral detergents to prevent dirt from reducing irradiation. Abrasive tools or corrosive products that could damage the thin films or protective coatings should be avoided.

In contexts exposed to strong gusts of wind, such as lightweight roofs or vertical surfaces at height, it is useful to periodically inspect the adhesive seal and the most stressed areas.

Another point of attention concerns the cables and electrical connections, which in flexible systems may be more exposed. Checking the sealing, any oxidation, and protection against infiltration is essential to maintain an adequate level of safety.

By following these maintenance practices, flexible solar panels ensure stable performance even in complex environmental conditions, extending the useful life of the system and reducing the risk of more costly corrective interventions.

Flexible solar panels vs traditional systems: comparison of costs and performance

The comparison between flexible solar panels and traditional photovoltaic modules is based on three key aspects: initial cost, efficiency, and areas of application. Although flexible technology has made significant progress in recent years, rigid crystalline silicon modules remain generally cheaper and more efficient in terms of energy yield per square meter.

Traditional panels indeed achieve efficiencies typically between 18–22%, while flexible modules have lower values, especially when made from amorphous silicon. CIGS technologies, on the other hand, are increasingly approaching the yields of conventional panels while maintaining a thin and lightweight structure.

From an economic perspective, the cost per watt of flexible panels remains higher, due to more complex production processes and the materials used. However, in many situations, their use is still advantageous: curved surfaces, lightweight coverings, continuous facades, temporary contexts, or installations where weight or stress limit the choice of rigid panels.

The real strength of flexible modules does not lie in maximum efficiency, but in their ability to generate energy in contexts where a traditional system would not be installable. This can translate into a higher overall energy return in the long term, especially for buildings with unconventional surfaces or architectural constraints.

In summary, traditional panels remain the most cost-effective choice for standard high-efficiency systems, while flexible panels represent the optimal solution in projects where lightness, adaptability, and architectural integration are priority parameters.

Future developments of printable and roll-to-roll photovoltaic technologies

Printable photovoltaic technologies and roll-to-roll represent the next evolution of flexible solar panels, aiming to reduce production costs and increase scalability.

Manufacturing through roll-to-roll processes allows for the deposition of photovoltaic materials on flexible plastic or metal substrates, using techniques similar to industrial printing, such as inkjet printing. These processes enable faster production cycles, reduced material consumption, and the possibility of creating ultra-thin modules that can be applied as membranes or continuous coatings.

Another area of research concerns durability: for printable flexible cells to become competitive on a large scale, it is essential to increase their lifespan and ensure energy production exceeds the energy cost required to produce them. It is important, in fact, that the amount of energy produced by a flexible solar cell over its lifetime is greater than the amount needed to produce and transport that same solar cell.

Finally, research is working on advanced polymers, more efficient barrier layers, and new transparent electrodes, with the goal of making the technology competitive for widespread building applications.

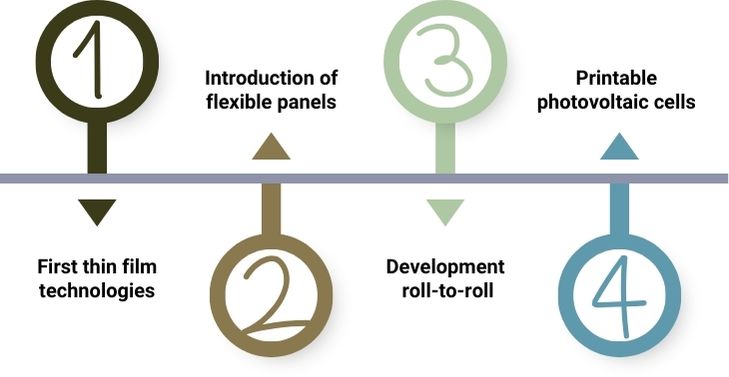

Evolution of flexible technologies
