Mezzanine Floor Design: Integrated Design and Modeling Approach

This professional guide offers an in-depth exploration of mezzanine floor design, encompassing critical technical considerations such as spatial habitability, precise dimensional planning, strategic material selection, and a complete architectural visualization approach utilizing an advanced BIM architectural design software.

In the accompanying Download section, access a complimentary project file that provides an interactive 3D model, enabling professionals and design enthusiasts to explore and replicate the sophisticated rendering techniques demonstrated in this comprehensive architectural insight.

Designing a mezzanine floor | Rendering created with Edificius

Types of mezzanine floors: masonry, wood, and steel

Mezzanine floors can be constructed using various materials, primarily masonry, wood, or steel, each offering distinct advantages. The structural integration of a mezzanine can follow two main approaches: it can either be designed as a collaborating system that works in conjunction with the existing building’s structure, or it can be conceived as a self-supporting structure that functions independently from the main building. The choice between these two approaches depends on multiple factors, including the building’s structural capacity, intended use, and specific project requirements.

Masonry mezzanine: advantages and structural limits

The load-bearing structure of a masonry mezzanine consists of reinforced concrete beams or joists, brick tiles, and concrete casting.

The structure can be anchored to the existing masonry (if it is load-bearing masonry), embedding the beams; otherwise, it will be necessary to create columns on which to support the structure. Since the slab of the masonry mezzanine is a permanent structure, it does not vibrate and can accommodate plumbing and electrical system pipes, just like a normal floor.

However, the masonry mezzanine also has disadvantages: the construction time is quite long, and it has a greater thickness and weight compared to other types.

We can conclude that designing a masonry mezzanine is advisable in the case of large areas to cover.

Wooden mezzanine: lightness and construction simplicity

When you want to opt for a lighter solution and perhaps removable, the most suitable solution is the wooden mezzanine.

In this case, the structure is made up of beams and columns that can be made of solid wood or laminated wood.

In small-sized mezzanines, the horizontal structure can also be anchored to the load-bearing walls with brackets or metal supports. Otherwise, it can rest on vertical posts attached to the wall and anchored to the underlying floor.

Wooden mezzanines are quick to build, have a completely dry assembly system, and are visually and structurally lighter.

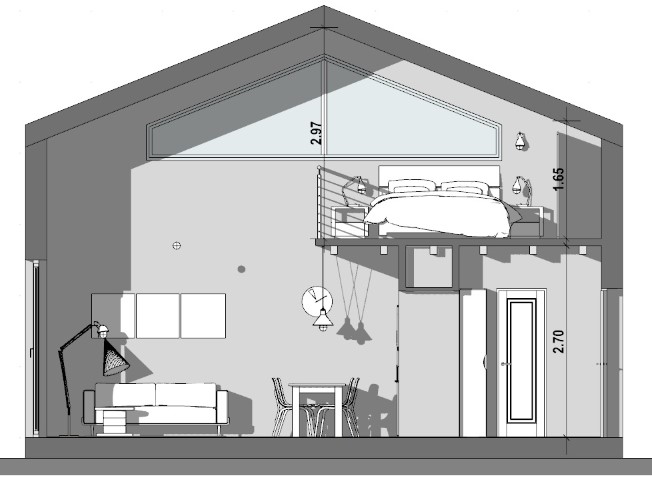

Designing a mezzanine | Section

Steel mezzanine: modern design and quick assembly

For a contemporary design, “industrial” or “hi-tech“, metal mezzanines are ideal. The structure consists of load-bearing elements made of steel profiles (IPE, HE, or rectangular or circular hollow sections) welded or bolted together.

The greatest advantage of a steel structure is its lightness: a metal mezzanine generally weighs 1/5 compared to a masonry structure and is easy and quick to assemble.

Studio apartment project with mezzanine: a practical case

We propose a project for a mezzanine that adheres to all the good design advice discussed in the focus.

Let’s assume we start from a studio apartment of about 40 m² located on the top floor of an apartment building, with a pitched roof and an internal height of 5.75 m at the ridge and 4.20 m at the eaves. The goal of the project is to create a mezzanine sleeping area.

Designing a mezzanine | Render created with Edificius

We design a mezzanine floor with a collaborative steel structure with a floor area of about 17 m², which does not exceed half of the studio apartment’s surface and can accommodate a double bedroom.

We set the height of the new floor slab at 2.80 m to ensure a minimum height that guarantees the habitability of the spaces located below and above the mezzanine. We cover the portion of space occupied by the entrance hallway, the bathroom, and the cooking area. We leave the living area at free height to ensure brightness and airiness in the space.

We position the L-shaped staircase near the entrance to optimize the limited space of the studio apartment. We leave the mezzanine open towards the underlying living area and assume we will install a metal railing about 1 m high.

We make the best use of the spaces by placing wardrobes in the lowest part of the new bedroom and complete the project by choosing colors and materials suitable for the starting context.

Evaluate design alternatives and generate renderings with AI

Thanks to the integration of artificial intelligence in architectural design software, it is now possible to quickly explore multiple configurations and visualize them with photorealistic renderings in real-time. AI architecture generators, such as usBIM.codesign, allow simulating various design scenarios, choosing from different uses (relaxation area, study, storage, mini-gym), structural materials (wood, metal, masonry), space-saving solutions, and customized furniture configurations.

AI can automatically propose optimized layouts based on the available dimensions, natural light present, and regulatory requirements (minimum heights, daylight ratios), improving design quality and reducing time and costs.

Moreover, through real-time generated renderings, the client can clearly see the final effect of the project, facilitating shared and informed decisions. The use of AI in this design phase translates into a more efficient, interactive, and personalized design process.

Download

Download the 3D BIM model (file .edf) of the project

FAQ about mezzanine floor design

What materials can be used to build a mezzanine floor?

The most common materials are masonry (reinforced concrete), wood (solid or laminated), and steel. The choice depends on structural feasibility, speed of assembly, weight, and the type of design desired.

What are the advantages of a masonry mezzanine?

It is a stable structure, free of vibrations, that can accommodate systems like a normal floor. It is suitable for covering large surfaces but is heavier and requires longer construction times.

Why choose a wooden mezzanine?

It is lightweight, quick to build, removable, and suitable for small spaces. It can be anchored to load-bearing walls or supported by columns. The assembly is dry and visually lighter.

What are the characteristics of a steel mezzanine?

It offers a modern, industrial, or hi-tech design. It is made of lightweight profiles, is quick to install, and weighs about 1/5 compared to a masonry structure.

What is the first step to take when designing a mezzanine?

Conduct an accurate survey of the site to verify heights, surfaces, and structural characteristics, in order to assess feasibility according to regulations.

Is a permit required for a non-habitable mezzanine?

Yes. Even a non-habitable mezzanine requires municipal authorization, as it modifies the internal distribution of the property. Generally, it can be carried out with CILA, if it does not involve structural works.

How can AI assist in the design of a mezzanine?

Artificial intelligence allows generating optimized layouts, simulating uses, choosing materials, and creating real-time renders, improving design quality and reducing time and costs.
